LEADING MANUFACTURER OF PRINTING AND CONVERTING MACHINES

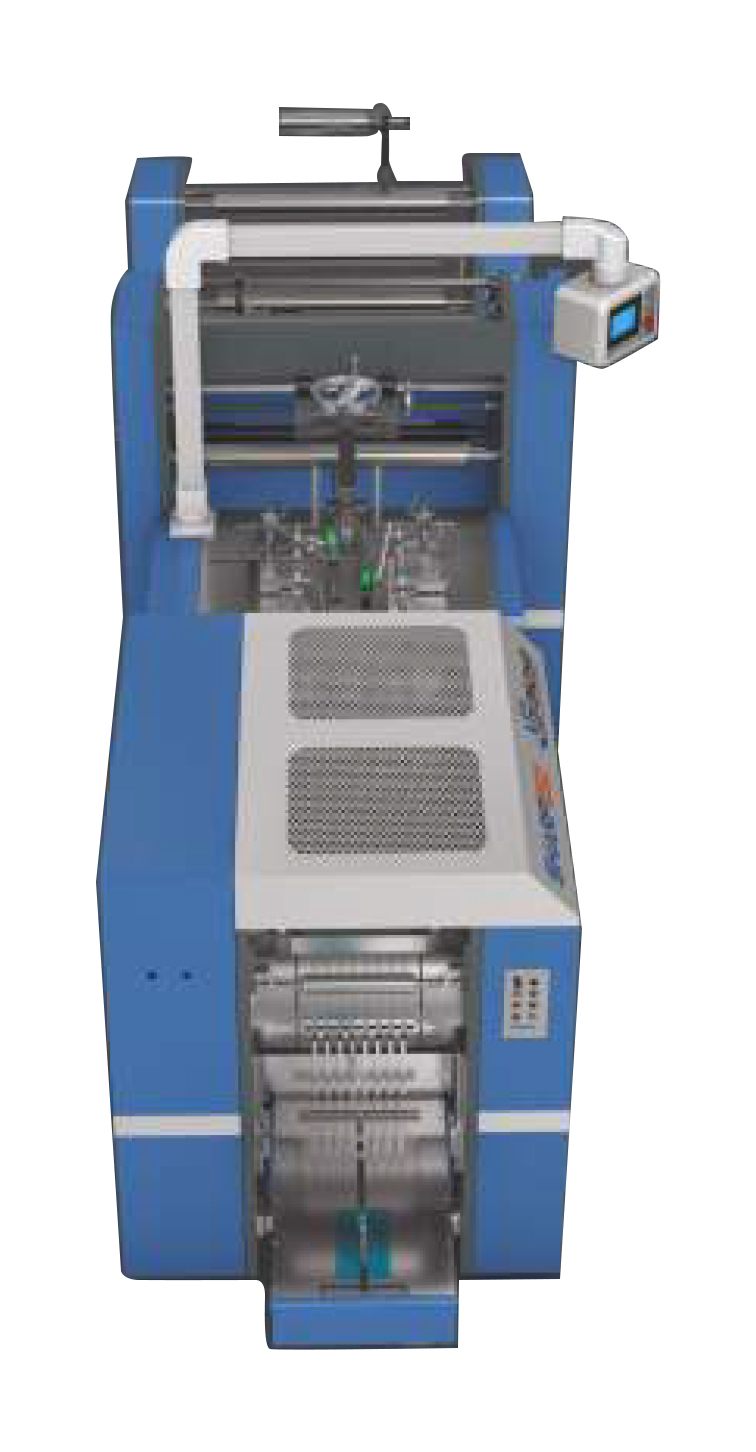

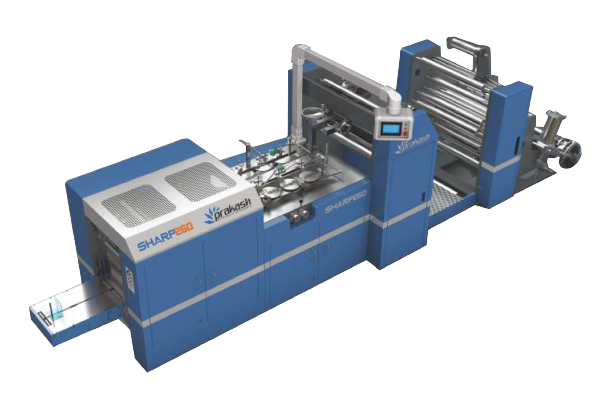

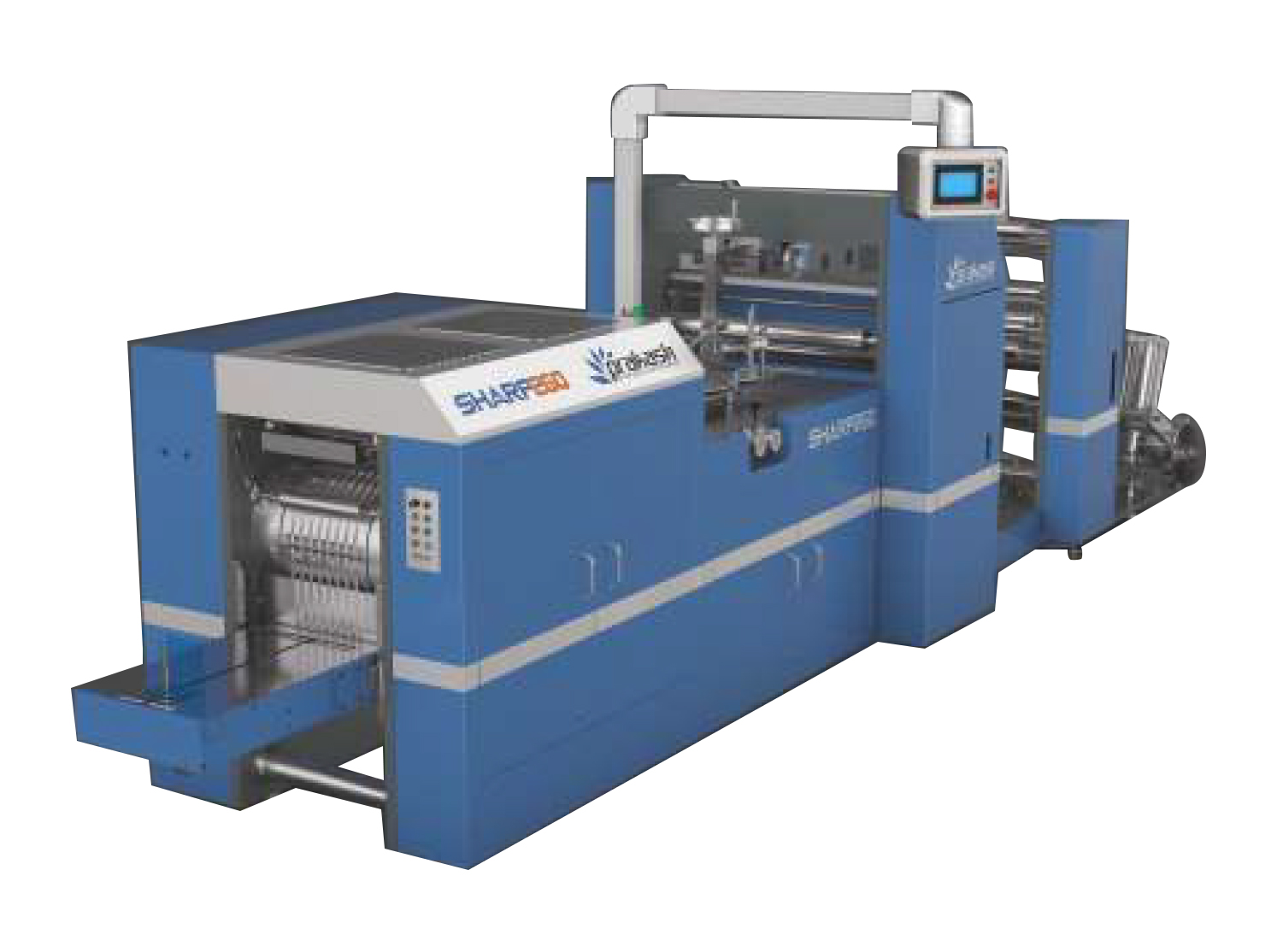

SHARP 260 V BOTTOM

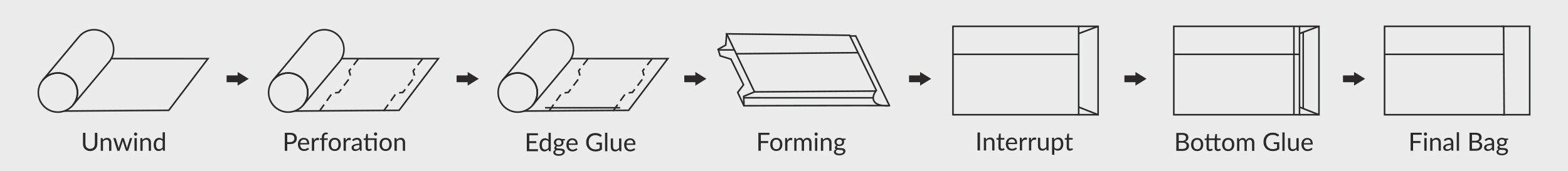

Full automatic high speed paper bag making machine use primary colour rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper, medico paper and so on, bag making process consist of puncture, side gluing, side folding, bag forming, cut off, bottom folding, battom gluing, finish product delivered in onetime. Our machine have advantage of easy operation, high efficency, more steady, it is an ideal machine for make different kind of paper bag, snack food paper bag, bread paper bag, dry fruit paper bag and environment friendly paper bag

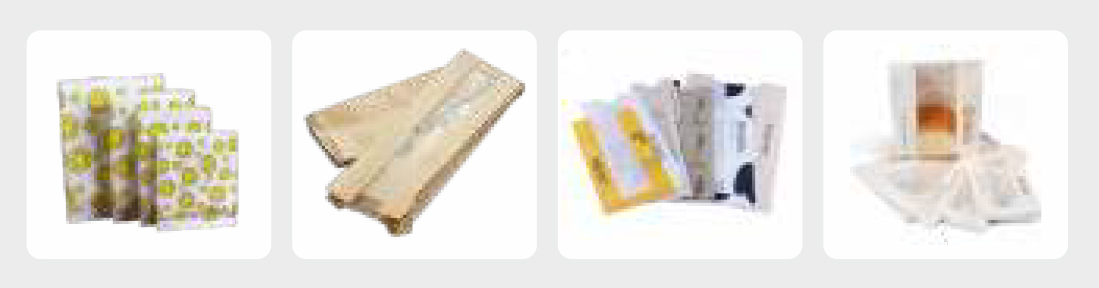

SAMPLES
| MODEL | SHARP 260 | SHARP 350 |
|---|---|---|
| Cutting Length | 120-400mm | 200-650 mm |
| Bag length | 100-385mm | 180-630 mm |
| Bag width | 80-260mm | 100-340 mm |
| Gusset size | 0-80mm | 0-90 mm |
| Ladder height | 15/20mm | 15/20 mm |
| Papper bag speed | 100-600pcs/min | 400pcs/min |
| Papper width | 160-780mm | 220-1000mm |
| Maximum roll diameter | 1000mm | 1000mm |
| Inner diameter of paper | 76mm | 76mm |
| Paper thickness | 35-80 gsm | 45-80 gsm |
| Working Air Pressure | >0.12m/min?0.5-0.8mpa | 0.12m/min, 0.5-0.8mpa |
| Power | 380v 3phase 9kw | 380v 3phase 9kw |
| Total weight | 3500kg | 4500kg |
| Dimensions | 6000*1600*17000mm | 9100*1900*1950mm |
FEATURES
The man-machine interface of Weilun touch screen is adopted, the operation function is clear at a glance, easy to control.
Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability.
Japanese Mistubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size.
The loading and unloading of raw material adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control.
Brushless servo motor is used is used to correct the deviation of raw material and reduce the adjustment time of paper roll alignment.
