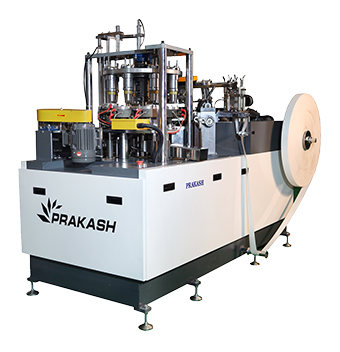

Paper Cup Making Machine (PC 75)
vertical shaft and without Gear Box
PC-750 paper cup machine is improved based on the normal chain driving type. In this machine is adopted which is based on Open Cam System(No Gear Box).This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment for producing drinking cups,market cups, coffee cups, advertising cups , etc. It is widely used for hot drink and beverage. If you need double pe coated paper cups or paper gram higher 250g/m2, we recommend you to use Ultrasonic paper cup machine.It can produce single pe coated paper cups and double pe coated paper cups.
Download Brochure Download Brochure Watch Video Watch Video
Strengths of Cup Forming Machine
- Sealed by Copper Heating Rod resulting in better Sealing and Low Leakage Problems.
- The applied Knurling Device is endowed with high pressure,over 10 times as high as that of traditional Knurling Machine.
- The retractable knife makes even wrinkles at the bottom of cup,leading to low leakage and long-time use.
- A Robot Arm is Used to collect and turn over cups,decreasing working time and energy cost.
Advantages
- Use of Open Cam Technology instead Gear Box for more stable running and speed up
- Use automatic lubrication to lubricate each and every part periodically instead of manual lubrication system.
- We use 125 type gear box,which is longer life and more accurate.Normally,100 type gear box is used.
- 100 type speed reducer is used instead 80 type.
- BEST QUALITY
- HIGH SPEED
- 100% ACCURACY
- 100% CAPACITY
Specification Details
Size
35-330
ML
weight
2
Ton
Material
PE-coated
paper
Capacity
65-75
pcs/min
package Size
2500 x 1400 x 1700 MM
| SPECIFICATIONS | Paper Cup 75 | Paper Cup 95 |
|---|---|---|
| Cup Size | 35-330 ml (different size mold exchanged) | 35-330 ml (different size mold exchanged) |
| Suitable paper material | 150-380g/m2（single or double PE-coated paper) | 150-380g/m2（single or double PE-coated paper) |
| Capacity | 65-75 pcs/min | 85-95 pcs/min Speed affected by cup size,paper quality & Thickness |
| Weight : | 2 ton | 2.8 Ton |
| Package size : | 2500 x 1400 x 1700 mm | 2250 x 1340 x 1950 mm |
| Power source : | 220V、380V 50HZ（please inform us your power in advanced） | 220V、380V 50HZ（please inform us your power in advanced |
| Total Power | 4 KW | 7 KW |
