Prakash Machineries Pvt Ltd

Fully Automatic Square Bottom Paper Bag Making Machine (Auto 450 )

new revolutionary product
Square Bottom Paper Bag Making Machine With Handle Auto 450

Highlights Of This Model

Quality

99%

Speed

95%

Accuracy

100%

Capacity

98%

model

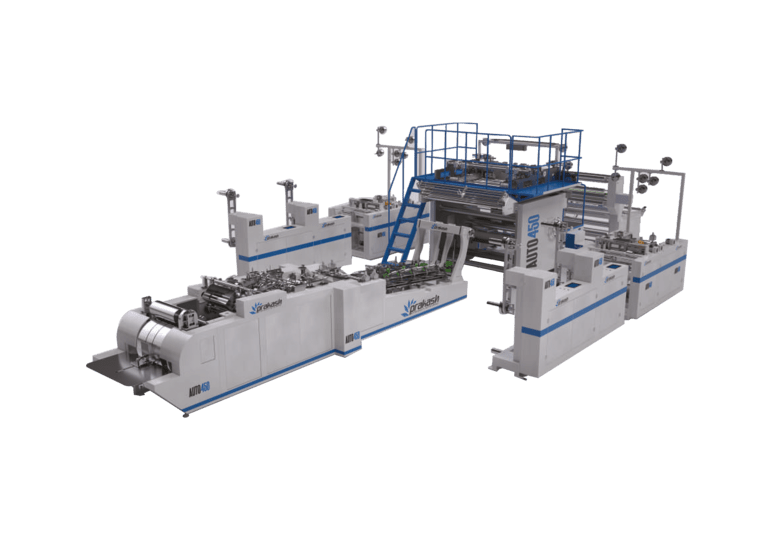

Fully Automatic Square Bottom Paper Bag Making Machine (Auto 450)

This is our fully automatic paper bag machine with a twisted rope handle or a flat belt handle made of paper. It is the most human-friendly machine that automates the process of making bags, which includes cutting, folding, gluing, and forming the bags with handles attached. The main target customers are retailers who require large-scale production of paper bags and the food industry.

The machine is eco-friendly, and Prakash is the leading manufacturer of the Fully-automatic Square bottom paper bag making machine (Auto 450). Throughout each process, sensors and controls ensure that each step is performed accurately and efficiently. The machine produces 100-150 bags per minute.

Download Brochure Download Brochure Watch Video Watch Video
Square Bottom Paper Bag Making Machine With Handle Auto 450

Specification Details

sizeSize

14500x5800x2500

MM

weightweight

19000

KG

MaterialMaterial

Steel &

Fiber

WarrantyWarranty

1

Year

CapacityCapacity

100-150

Bag / Min

SPECIFICATIONS AUTO-360 AUTO-450 AUTO-550
Paper Roll Width 460-1110mm 650-1330mm 670-1670mm
Paper Bag Width 135/180-360mm 230-450mm 240-550mm
Bottom Size 80-180mm 80-200mm 80-280mm
Bag Cutting Length 270-530mm
with handle height		 270-630mm
with handle height		 380-780mm
with handle height
Paper Thickness 50-150gsm 65-150gsm 90-150gsm
Handle Height 90-120mm 90-120mm 90-120mm
Diameter of Core 76mm 76mm 76mm
Lenght of Twisted Rope
(Customizable)		 145-165mm 155-175mm 155-175mm
Diameter of Twisted Rope 3-6mm 3-6mm 3-6mm
Handle Patch Lenght 35-50mm 35-50mm 35-50mm
Handle Patch Roll Diameter 1000mm 1000mm 1000mm
Paper Patch Roll Width 70-100mm 70-100mm 70-100mm
Paper GSM for Handle Patch 80-150gsm 80-150gsm 80-150gsm
Max Speed* 100-150 Bags/Min 100-150 Bags/Min 100-150 Bags/Min
Power 30Kw 33Kw 42Kw
Weight 18000 KG 19000 KG 23000 KG
Machine Dimension (L*W*H) 13500x5700x2500mm 14500x5800x2500mm 15500x6200x2500mm
  • Dual mould technology
  • Hot & cold glueing option
  • Full servo control, plc & touchscreen
  • Automatic tension control & web guide
  • Fully internet enabled
  • Production management
  • Color mark tracking system
